The Installation Way of Linear Actuator

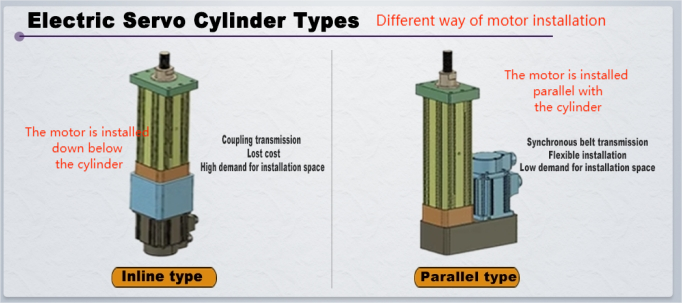

I. Parallel installation

1, The front flange installation, it is generally all column or partially inverted installation

2, Couplings, such as the front fish eye lens

3, U-type coupling installation

4, Vertical installation. This type of installation method is generally all horizontal push

5, The bottom of the installation, one is a bottom of the hole, the other is a bottom of the accelerator plate; the actual method is subject to the actual application of the working conditions to make decisions.

2.linear installation

Linear electric cylinder and folding electric cylinder compared to the installation method is not so various.Linear electric cylinder is the most common front flange mounting, or coupling fisheye lens.

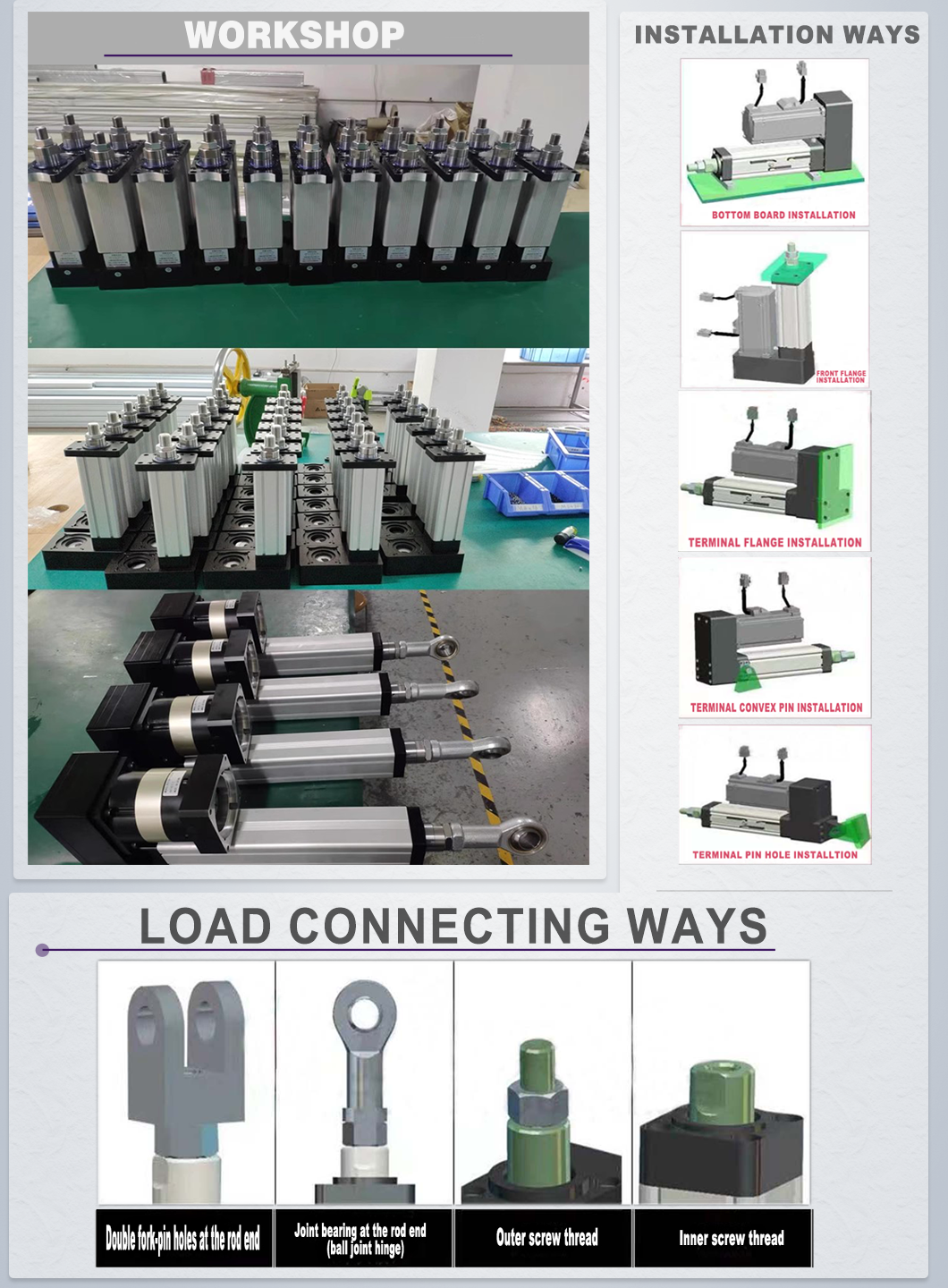

There are many ways to install electric cylinders, such as flange mounting, trunnion mounting, side mounting, tail hinge mounting, articulating bearing mounting, and piston rod head mounting with internal and external threads.
